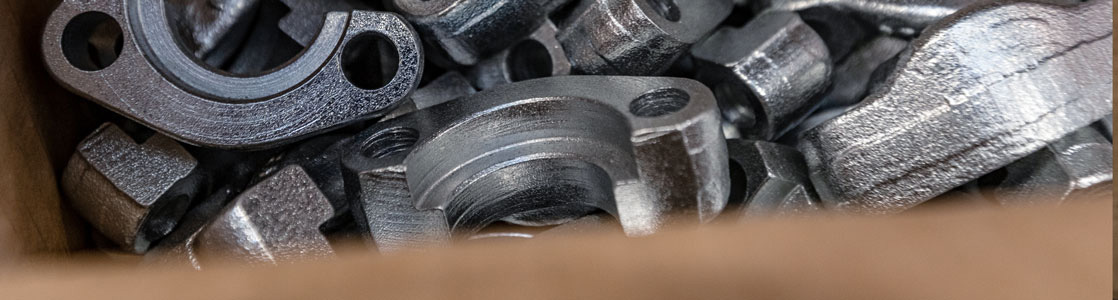

Brides avec filetage extérieur SAE

Brides avec filetage extérieur SAE

Brides avec filetage extérieur SAE

Vous trouverez ici exactement ce qu’il faut à votre entreprise. Notre large gamme de produits, comprenant plus de 8000 pièces différentes, offre des solutions sur mesure à votre projet. Notre portefeuille de produits propose des brides SAE (ISO 6162), des brides monobloc, à visser, avec filetage extérieur, des brides à souder à l’intérieur et l’extérieur, toutes SAE, ainsi que des brides avec collets à souder. Tous ces produits sont disponibles en version droite ou dotés d’un angle de 90°.

De plus, vous obtenez chez nous des brides de fermeture, des brides intermédiaires, des brides avec raccord pour mesure, des connecteurs en T, des brides de réduction, des brides à collerette et des blocs SAE. Sans oublier les raccords pour pompe à engrenage et les raccords à bride carrée (ISO 6164) droits et dotés d’un angle de 90° et Cetop (standard).

Faites-vous vous-même une idée de notre très importante gamme de produits en cliquant ci-dessous sur notre catalogue en ligne.


SAE-flange adapter metric 24° DIN 3901

Katalogseite: 60,61

Bestellbezeichnung:

C22

316L

adaptor only

SFCE-...

SFCE-X-...

including split flanges, metric bolts and o-ring (nut and cutting ring)

SFCE-...M(M)

SFCE-X-...MX(M)

including split flanges, UNC bolts and o-ring (nut and cutting ring)

SFCE-...U(M)

SFCE-X-...UX(M)

SAE-flange metric tapped 24° DIN 3901

Katalogseite: 62,63

Bestellbezeichnung:

flange only

AFG-...

including metric bolts and o-ring

AFG-...M

including UNC bolts and o-ring

AFG-...U

including bolts (metr. or UNC), o-ring, cutting ring and nut

AFG-...MM (UM)

SAE-flange metric tapped 24° companion DIN 3901

Katalogseite: 64,65

Bestellbezeichnung:

316L

flange with metric threads

GFG-...L/S...

GFG-X-...L/S

SAE-90° flange adapter 24° DIN 3901 – forged

Katalogseite: 66,67

Bestellbezeichnung:

316L

only 90° elbow

WFG-...

WFG-X-...

including split flanges, bolts and o-ring

WFG-...M

WFG-X-...MX

including split flanges, bolts, o-ring, cutting ring and nut

WFG-...MM

WFG-X-...MMX

SAE-90° flange adapter 24° DIN 3901 – brazed

Katalogseite: 68

Bestellbezeichnung:

ST37*1

adapter only

SFCE-...

including split flanges, metric bolts and o-ring (nut and cutting ring)

SFCE-...M(M)

including split flanges, UNC bolts and o-ring (nut and cutting ring)

SFCE-...U(M)

SAE-90° threaded flange 24° DIN 3901

Katalogseite: 69

Bestellbezeichnung:

flange only

AFG-.../90M...

including metric bolts and o-ring

AFG-.../90M...M

including UNC bolts and o-ring

AFG-.../90M...U

SAE-45° flange-adapter DIN 3901

Katalogseite: 70

Bestellbezeichnung:

only 45° flange-adapter

WFG-...-45-...

WFG-X-...-45-...

including split flanges, bolts and o-ring

WFG-...-45-...M

WFG-X-...-45-...MX

including split flanges, bolts, o-ring, cutting ring and nut

WFG-...-45-...MM

WFG-X-...-45-...MMX

SAE-adapter JIC 37°

Katalogseite: 71

Bestellbezeichnung:

C22

316L

adaptor only

SFCE-...J

SFCE-X-...J

including split flanges, metric bolts and o-ring

SFCE-...JM

SFCE-X-...J...MX

including split flanges, UNC bolts and o-ring

SFCE-...JU

SFCE-X-...J...UX

SAE-threaded flange JIC 37°

Katalogseite: 72,73

Bestellbezeichnung:

flange only

AFG-...

including metric bolts and o-ring

AFG-...M

incl. UNC-Schraubensatz und O-Ring

including UNC bolts and o-ring

AFG-...U

SAE-90° flange adapter JIC 37° – forged

Katalogseite: 74,75

Bestellbezeichnung:

316L

only 90° elbow

WFG-...

WFG-X-...

including split flanges, metric bolts and o-ring

WFG-...M

WFG-X-...MX

including split flanges, UNC bolts and o-ring

WFG-...U

WFG-X-...UX

SAE-45° flange adapter JIC 37° – forged

Katalogseite: 76

Bestellbezeichnung:

only 45° flange-adapter

WFG-...-45-J...

WFG-X-...-45-J...

including split flanges, bolts and o-ring

WFG-...-45-J...M

WFG-X-...-45-J...MX

SAE-flange adapter BSPP thread

Katalogseite: 77

Bestellbezeichnung:

316L

adaptor only

SFCE-...G

SFCE-X-...G

including split flanges, metric bolts and o-ring

SFCE-...GM

SFCE-X-...GMX

including split flanges, UNC bolts and o-ring

SFCE-...GU

SFCE-X-...GUX

SAE-90° flange adapter BSPP-60° – forged

Katalogseite: 78

Bestellbezeichnung:

flange only

WFG-...G

including split flanges, metric bolts and o-ring

WFG-...GM

including split flanges, UNC bolts and o-ring

WFG-...GU

SAE-45° flange adapter BSPP-60° – forged

Katalogseite: 79

Bestellbezeichnung:

only 45° flange-adapter

WFG-...-45-G...

WFG-X-...-45-G...

including split flanges, bolts and o-ring

WFG-...-45-G...M

WFG-X-...-45-G...MX

SAE-adapter UN-ORS threaded

Katalogseite: 80

Bestellbezeichnung:

C22

316L

adaptor only

SORS-...

SORX-...

including split flanges, metric bolts and o-ring

SORS-...M

SORX-...MX

including split flanges, UNC bolts and o-ring

SORS-...U

SORX-...UX

SAE-90° adapter UN-ORS threaded

Katalogseite: 81

Bestellbezeichnung:

only 90° flange-adapter

WORS-...

WORX-...

including split flanges (or complete flange), metric bolts and o-ring

WORS-...M

WORX-...MX

including split flanges, unc-bolts, o-ring

WORS-...U

WORX-...UX

SAE-45° adapter UN-ORS threaded

Katalogseite: 82

Bestellbezeichnung:

only 45° flange-adapter

WORS-...-45-...(UN)

WORX-...-45-...(UN)

including split flanges, bolts and o-ring

WORS-...-45-...(UN)M

WORX-...-45-...(UN)MX

including split flanges, unc-bolts, o-ring

WORS-...-45-...(UN)U

WORX-...-45-...(UN)UX
