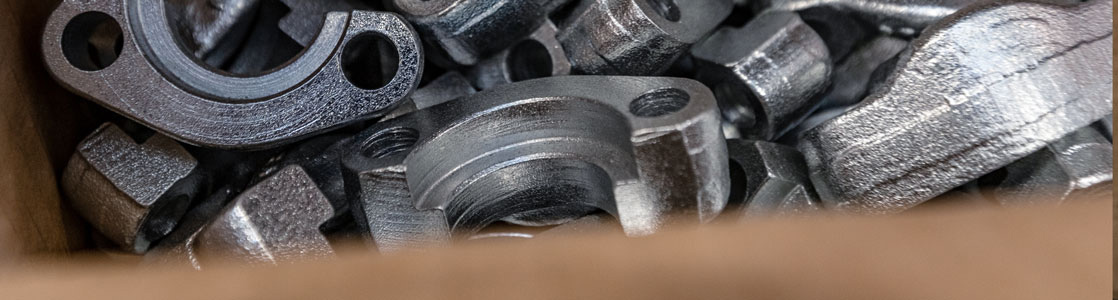

SAE Pipe Threaded Flanges

SAE Pipe Threaded Flanges

SAE Pipe Threaded Flanges

Find the right product for your company. Our wide range of products consisting of over 8000 individual parts makes it possible to create customised solutions for your company. Our product portfolio includes SAE flanges (ISO 6162), SAE full flanges, screw-in flanges, external thread flanges, weld-in and weld-on flanges as well as flanges with butt-welded collars. These products can all be delivered in straight and 90° versions.

Furthermore we can deliver closing flanges, connecting flanges, flanges with measurement connections, T-connectors, reducing flanges, raised-edge flanges and SAE blocks. These as well as connections for gear pumps and square-head flange connections (ISO 6164) are available as straight and 90° versions and Cetop (standard) versions.

Get a better picture of our range of products by clicking through our extensive online catalogue below.


SAE-pipe threaded flange BSPP

Catalogue page: 48,49

Data Sheet Product Enquiry

Ordering code:

316L

flange only

AFS-…G

AFX-…G

flange including metric bolts and o-ring

AFS-…GM

AFX-…GMX

flange including UNC bolts and o-ring

AFS-…GU

AFX-…GUX

SAE-pipe threaded flange BSPP-companion

Catalogue page: 50,51

Data Sheet Product Enquiry

Ordering code:

316L

flange with metric threads

GFS-…GM

GFX-…GM

flange with UNC threads

GFS-…GU

GFX-…GU

SAE-90° threaded flange BSPP

Catalogue page: 52,53

Data Sheet Product Enquiry

Ordering code:

316L

flange only

AFS-…/90 G

AFX-…/90 G

including metric bolts and o-ring

AFS-…/90 GM

AFX-…/90 GMX

including UNC bolts and o-ring

AFS-…/90 GU

AFX-…/90 GUX

SAE-threaded flange NPT

Catalogue page: 54,55

Data Sheet Product Enquiry

Ordering code:

316L

flange only

AFS-…N

AFX-…N

including metric bolts and o-ring

AFS-…NM

AFX-…NMX

including unc bolts and o-ring

AFS-…NU

AFX-…NUX

SAE-threaded flange NPT-companion

Catalogue page: 56

Data Sheet Product Enquiry

Ordering code:

316L

flange with metric threads

GFS-…NM

GFX-…NM

flange with UNC threads

GFS-…NU

GFX-…NU

SAE-90° threaded flange NPT

Catalogue page: 57

Data Sheet Product Enquiry

Ordering code:

316L

flange only

AFS-…/90N

AFX-…90N

including metric bolts and o-ring

AFS-…/90NM

AFX-…90NMX

including UNC bolts and o-ring

AFS-…/90NU

AFX-…90NUX

SAE-threaded flange UN/UNF

Catalogue page: 58,59

Data Sheet Product Enquiry

Ordering code:

316L

flange only

AFS-…T

AFX-…T

including metric bolts and o-ring

AFS-…TM

AFX-…TMX

including UNC bolts and o-ring

AFS-…TU

AFX-…TUX
