SAE Flange Halves / Flange Clamps

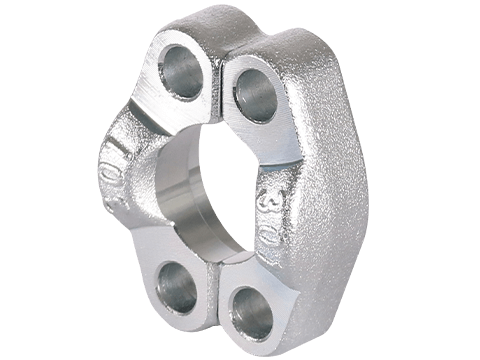

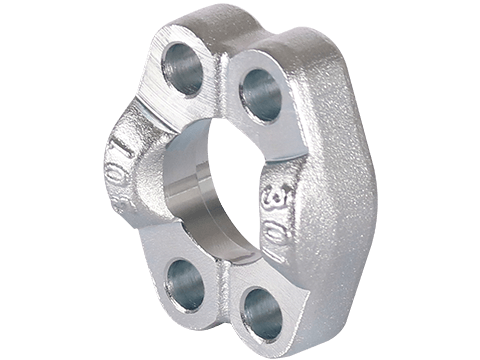

SAE-split flange halves
Katalogseite: 1

Bestellbezeichnung: |
C45 |
316L |
flange half only |
FH-... |
FH-X-... |
2 pcs. flange halfes |
SATZ-FH-… |
SATZ-FH-X-… |
2 pcs. flange halfes, 4 pcs. screws with spring washer, o-ring |
SATZ-FH-…-M(-UNC) |
SATZ-FH-X-…-MX(-UX) |

SAE-flange clamp
Katalogseite: 2

Bestellbezeichnung: |
C45 |
316L |
one piece flange clamp only |
VF-... |
VF-X-... |
1 pcs. one piece flange clamp, 4 pcs. screws with spring washer, o-ring |
SATZ-VF-…-M (-UNC) |
SATZ-VF-X-…-MX (-UX) |

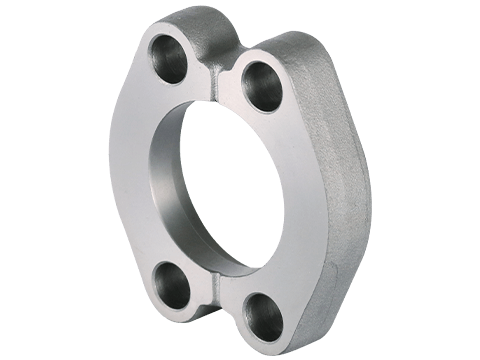

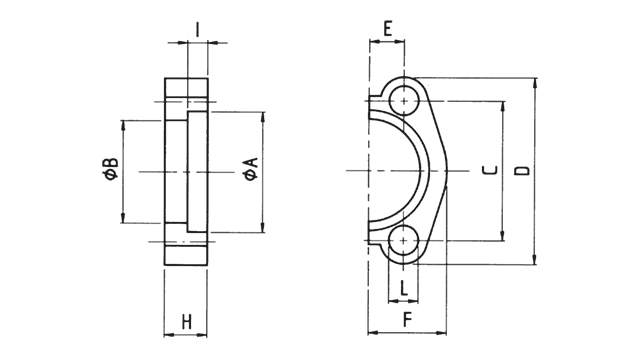

SAE-split flange – flat
Katalogseite: 3

Bestellbezeichnung: |
||

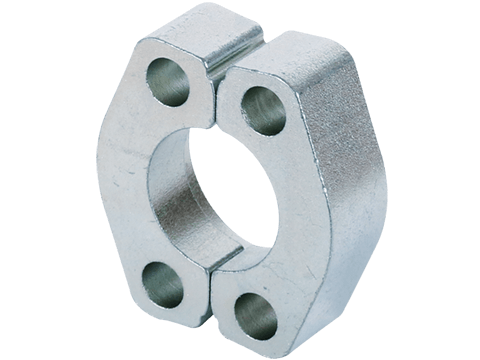

flange half flat only |
HF-... |
|
2 pcs. flange halfesflat |
SATZ-HF-… |
|
2 pcs. flange halfes flat, 4 pcs. screws with spring washer, o-ring |
SATZ-HF-…-M (-UNC) |

SAE-flange clamp – flat
Katalogseite: 4

Bestellbezeichnung: |
||
one piece flange clamp flat only |
VFH-... |
|
1 pcs. one piece flange clamp - flat, 4 pcs. screws with spring washer, o-ring |
SATZ-VFH-…-M (-UNC) |

SAE-flange clamp metric tapped
Katalogseite: 5

Bestellbezeichnung: |
C45 |
316L |
flange only |
VFG-... |
VFG-X-... |

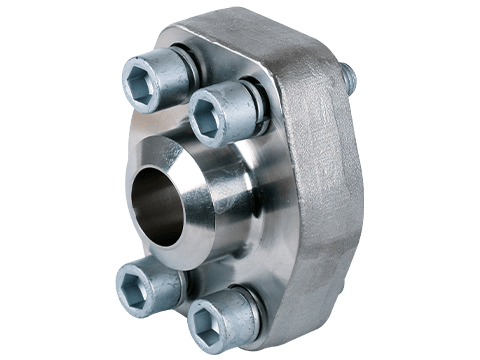

SAE Butt Weld Flanges

SAE-flange head
Katalogseite: 6,7

Bestellbezeichnung: |
316L |
|
flange head only |
SFS-... |
SFX-... |
butt weld flange with acessories including split flanges (or complete flange), metric bolts and o-ring |
SFS-...M |
SFX-...MX |
including split flanges (or complete flange), UNC-bolts and o-ring |
SFS-...U |
SFX-...UX |
Ordering code flange head as counterflange (without o-ring groove). |
||
flange head without o-ring groove |
GSFS-... |
GSFX-... |

SAE-welding head-coupling
Katalogseite: 8,9

Bestellbezeichnung: |
316L |
|
welding head-coupling |
DSFS-...M |
DSFX-...MX |

SAE-flange head
Katalogseite: 10

Bestellbezeichnung: |
316L |
|
flange head only |
FT-... |
FT-X-... |
including split flanges (or complete flange), metric bolts and o-ring |
FT-...M |
FT-X-...MX |
including split flanges (or complete flange), UNC bolts and o-ring |
FT-...U |
FT-X-...UX |

SAE-butt weld flange – inches
Katalogseite: 11

Bestellbezeichnung: |
316L |
|
flange only |
AFS-...ST |
AFX-...ST |
including metric bolts and o-ring |
AFS-...STM |
AFX-...STMX |
including UNC bolts and o-ring |
AFS-...STU |
AFX-...STUX |

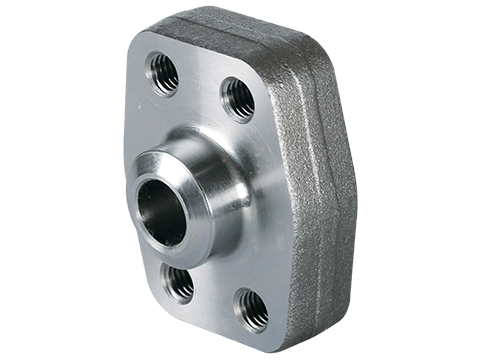

SAE-butt weld flange companion – inches
Katalogseite: 12

Bestellbezeichnung: |
316L |
|
flange with metric threads |
GFS-...ST |
GFX-...ST |
flange with UNC threads |
GFS-...STU |
GFX-...STU |

SAE-butt weld flange Schedule 10
Katalogseite: 13

Bestellbezeichnung: |
316L |
|
flange only |
AFS-...ST10 |
AFX-...ST10 |
including metric bolts and o-ring |
AFS-...ST10M |
AFX-...ST10MX |
including unc bolts and o-ring |
AFS-...ST10U |
AFX-...ST10UX |

SAE-butt weld flange companion – schedule 10
Katalogseite: 14

Bestellbezeichnung: |
316L |
|
flange with metric threads |
GFS-...ST10 |
GFX-...ST10 |
flange with unc threads |
GFS-...ST10U |
GFX-...ST10U |

SAE-butt weld flange – schedule 40
Katalogseite: 15

Bestellbezeichnung: |
316L |
|
flange only |
AFS-...ST40 |
AFX-...ST40 |
including metric bolts and o-ring |
AFS-...ST40M |
AFX-...ST40MX |
including unc bolts and o-ring |
AFS-...ST40U |
AFX-...ST40UX |

SAE-butt weld flange companion – schedule 40
Katalogseite: 16

Bestellbezeichnung: |
316L |
|
flange with metric threads |
GFS-...ST40 |
GFX-...ST40 |
flange with unc threads |
GFS-...ST40U |
GFX-...ST40U |

SAE-butt weld flange – schedule 80
Katalogseite: 17

Bestellbezeichnung: |
316L |
|
flange only |
AFS-...ST80 |
AFX-...ST80 |
including metric bolts and o-ring |
AFS-...ST80M |
AFX-...ST80MX |
including unc bolts and o-ring |
AFS-...ST80U |
AFX-...ST80UX |

SAE-butt weld flange companion – schedule 80
Katalogseite: 18

Bestellbezeichnung: |
316L |
|
flange with metric threads |
GFS-...ST80 |
GFX-...ST80 |
flange with unc threads |
GFS-...ST80U |
GFX-...ST80U |

SAE-butt weld flange – schedule 160
Katalogseite: 19

Bestellbezeichnung: |
316L |
|
flange only |
AFS-...ST160 |
AFX-...ST160 |
including metric bolts and o-ring |
AFS-...ST160M |
AFX-...ST160MX |
including unc bolts and o-ring |
AFS-...ST160U |
AFX-...ST160UX |

SAE-butt weld flange companion – schedule 160
Katalogseite: 20

Bestellbezeichnung: |
316L |
|
flange with metric threads |
GFS-...ST160 |
GFX-...ST160 |
flange with unc threads |
GFS-...ST160U |
GFX-...ST160U |

SAE-butt weld flange – schedule XX
Katalogseite: 21

Bestellbezeichnung: |
316L |
|
flange only |
AFS-...ST-XX |
AFX-...ST-XX |
including metric bolts and o-ring |
AFS-...ST-XXM |
AFX-...ST-XXMX |
including unc bolts and o-ring |
AFS-...ST-XXU |
AFX-...ST-XXUX |

SAE-butt weld flange companion – schedule XX
Katalogseite: 22

Bestellbezeichnung: |
316L |
|
flange with metric threads |
GFS-...ST-XX |
GFX-...ST-XX |
flange with unc threads |
GFS-...ST-XXU |
GFX-...ST-XXU |

SAE-butt weld flange – metric ND 40
Katalogseite: 23

Bestellbezeichnung: |
316L |
|
flange only |
AFS-...STRE |
AFX-... STRE |
including metric bolts and o-ring |
AFS-...STREM |
AFX-...STREMX |
including UNC bolts and o-ring |
AFS-...STREU |
AFX-...STREUX |

SAE-butt weld flange companion – metric ND 40
Katalogseite: 24,25

Bestellbezeichnung: |
316L |
|
flange only |
GFS-...STRE |
GFX-...STRE |

SAE-butt weld flange metric pipes
Katalogseite: 26,27

Bestellbezeichnung: |
316L |
|
flange only |
AFS-...SRE |
AFX-...SRE |
including metric bolts and o-ring |
AFS-...SREM |
AFX-...SREMX |
including UNC bolts and o-ring |
AFS-...SREU |
AFX-...SREUX |

SAE-butt weld flange-metric pipes – companion
Katalogseite: 28

Bestellbezeichnung: |
316L |
|
flange only |
GFS-...SRE |
GFX-...SRE |

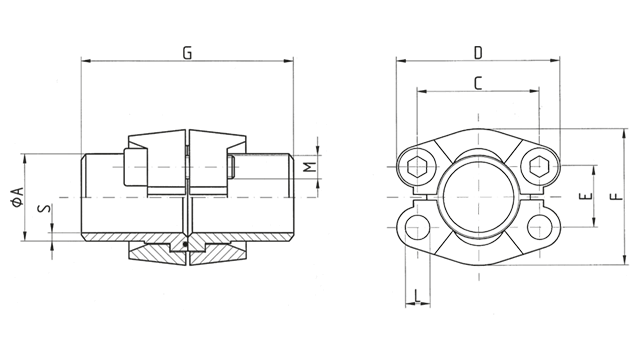

SAE-butt weld flange-coupling
Katalogseite: 29

Bestellbezeichnung: |
316L |
|
flange with metric bolts and o-ring |
DFS-...STM |
DFX-...STM |
flange with UNC bolts and o-ring |
DFS-...STU |
DFX-...STU |

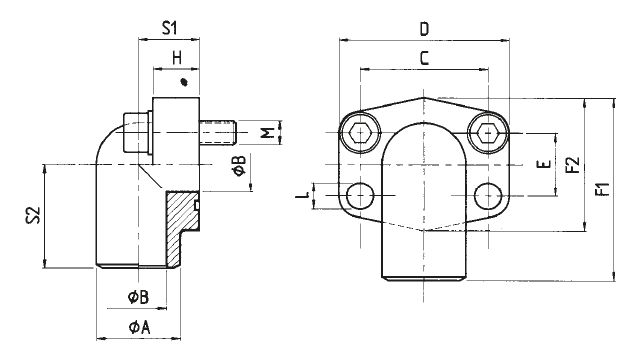

SAE-90° butt weld flange – inches
Katalogseite: 30,31

Bestellbezeichnung: |
||
flange only |
AFS-.../90ST |
|
including metric bolts and o-ring |
AFS-.../90STM |

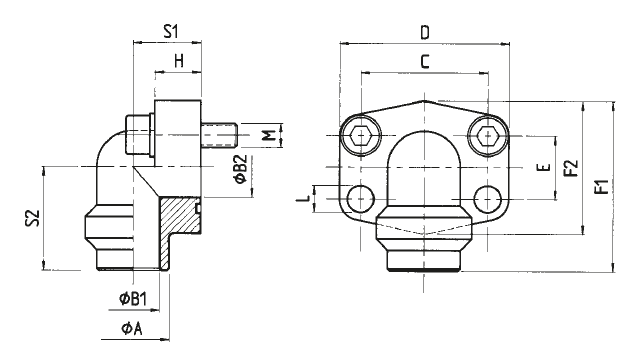

SAE-90° butt weld flange for metric pipes
Katalogseite: 32,33

Bestellbezeichnung: |
316L |
|
flange only |
AFS-... |
AFX-... |
including metric bolts and o-ring |
AFS-...M |
AFX-...MX |
including UNC bolts and o-ring |
AFS-...U |
AFX-...UX |

SAE-90° butt weld flange adapter for metric pipes
Katalogseite: 34

Bestellbezeichnung: |
316L |
|
only 90° elbow |
WFS-... |
WFS-X-... |
including split flanges, metric bolts and o-ring |
WFS-...M |
WFS-X-...MX |
including split flanges, UNC bolts and o-ring |
WFS-...U |
WFS-X-...UX |

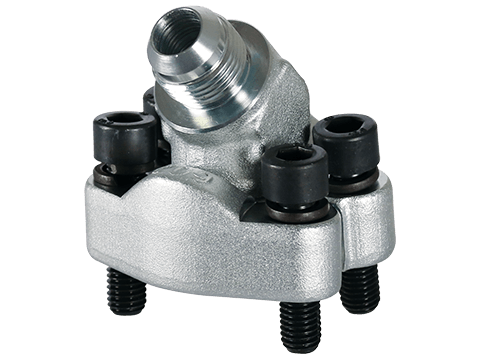

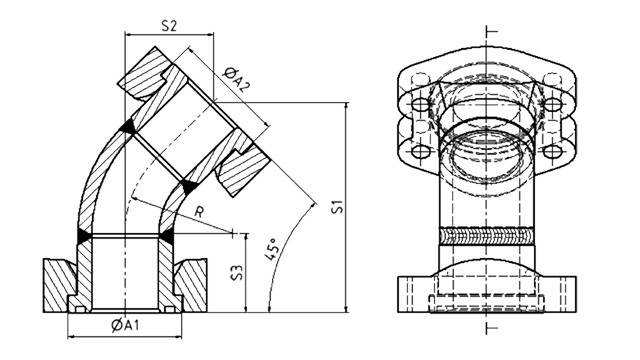

SAE-45° butt weld flange adapter for metric pipes
Katalogseite: 35

Bestellbezeichnung: |
||
only 45° flange-adapter |
WFS-...-45-... |
WFS-X-...-45-... |
including split flanges, bolts and o-ring |
WFS-...-45-...M |
WFS-X-...-45-... MX |
SAE Socket Weld Flanges

SAE-socket weld flange
Katalogseite: 36,37

Bestellbezeichnung: |
316L |
|
flange only |
AFS-...S |
AFX-...S |
including metric bolts and o-ring |
AFS-...SM |
AFX-...SMX |
including UNC bolts and o-ring |
AFS-...SU |
AFX-...SUX |

SAE-socket weld flange companion
Katalogseite: 38,39

Bestellbezeichnung: |
316L |
|
flange with metric threads |
GFS-...SM |
GFX-...SM |
flange with UNC threads |
GFS-...SU |
GFX-...SU |

SAE-socket weld flange-coupling
Katalogseite: 40,41

Bestellbezeichnung: |
316L |
|
flange including metric bolts and o-ring |
DFS-...SM |
DFX-...SMX |
flange with UNC bolts and o-ring |
DFS-...SU |
DFX-...SUX |

SAE-socket weld flange 500 PSI
Katalogseite: 42

Bestellbezeichnung: |
316L |
|
flange only |
AFC-...S |
AFC-X-...S |
including metric bolts and o-ring |
AFC-...SM |
AFC-X-...SMX |

SAE-socket weld companion 500 PSI
Katalogseite: 43

Bestellbezeichnung: |
316L |
|
flange only |
GFC-...S |
GFC-X-...S |

SAE-socket weld flange-coupling 500 PSI
Katalogseite: 44

Bestellbezeichnung: |
316L |
|
flange including bolts and o-ring |
DFC-...SM |
DFC-X... SMX |

SAE-socket weld adapter
Katalogseite: 45

Bestellbezeichnung: |
||
adaptor only |
SWA-... |
|
including split flanges, metric bolts and o-ring |
SWA-...M |
|
including split flanges, UNC bolts and o-ring (nut and cutting ring) |
SWA-...U |

SAE-90° socket weld flange
Katalogseite: 46

Bestellbezeichnung: |
316L |
|
flange only |
AFS-.../90S |
AFX-.../90S |
including metric bolts and o-ring |
AFS-.../90SM |
AFX-.../90SMX |
including UNC bolts and o-ring |
AFS-.../90SU |
AFX-.../90SUX |

SAE-90° socket weld flange companion
Katalogseite: 47

Bestellbezeichnung: |
316L |
|
flange only |
GFS-.../90S |
GFX-.../90S |
SAE Pipe Threaded Flanges

SAE-pipe threaded flange BSPP
Katalogseite: 48,49

Bestellbezeichnung: |
316L |
|
flange only |
AFS-...G |
AFX-...G |
flange including metric bolts and o-ring |
AFS-...GM |
AFX-...GMX |
flange including UNC bolts and o-ring |
AFS-...GU |
AFX-...GUX |

SAE-pipe threaded flange BSPP-companion
Katalogseite: 50,51

Bestellbezeichnung: |
316L |
|
flange with metric threads |
GFS-...GM |
GFX-...GM |
flange with UNC threads |
GFS-...GU |
GFX-...GU |

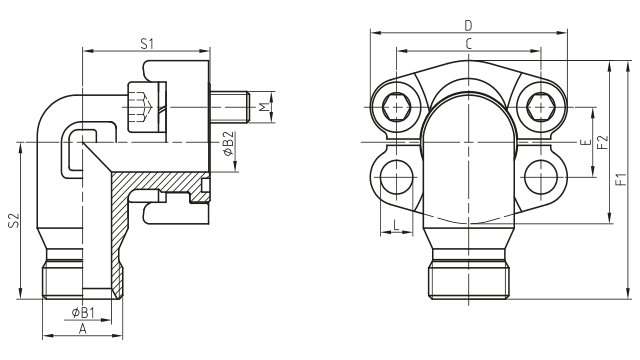

SAE-90° threaded flange BSPP
Katalogseite: 52,53

Bestellbezeichnung: |
316L |
|
flange only |
AFS-.../90 G |
AFX-.../90 G |
including metric bolts and o-ring |
AFS-.../90 GM |
AFX-.../90 GMX |
including UNC bolts and o-ring |
AFS-.../90 GU |
AFX-.../90 GUX |

SAE-threaded flange NPT
Katalogseite: 54,55

Bestellbezeichnung: |
316L |
|
flange only |
AFS-...N |
AFX-...N |
including metric bolts and o-ring |
AFS-...NM |
AFX-...NMX |
including unc bolts and o-ring |
AFS-...NU |
AFX-...NUX |

SAE-threaded flange NPT-companion
Katalogseite: 56

Bestellbezeichnung: |
316L |
|
flange with metric threads |
GFS-...NM |
GFX-...NM |
flange with UNC threads |
GFS-...NU |
GFX-...NU |

SAE-90° threaded flange NPT
Katalogseite: 57

Bestellbezeichnung: |
316L |
|
flange only |
AFS-.../90N |
AFX-...90N |
including metric bolts and o-ring |
AFS-.../90NM |
AFX-...90NMX |
including UNC bolts and o-ring |
AFS-.../90NU |
AFX-...90NUX |

SAE-threaded flange UN/UNF
Katalogseite: 58,59

Bestellbezeichnung: |
316L |
|
flange only |
AFS-...T |
AFX-...T |
including metric bolts and o-ring |
AFS-...TM |
AFX-...TMX |
including UNC bolts and o-ring |
AFS-...TU |
AFX-...TUX |
SAE Threaded Flanges

SAE-flange adapter metric 24° DIN 3901
Katalogseite: 60,61

Bestellbezeichnung: |
C22 |
316L |
adaptor only |
SFCE-... |
SFCE-X-... |
including split flanges, metric bolts and o-ring (nut and cutting ring) |
SFCE-...M(M) |
SFCE-X-...MX(M) |
including split flanges, UNC bolts and o-ring (nut and cutting ring) |
SFCE-...U(M) |
SFCE-X-...UX(M) |

SAE-flange metric tapped 24° DIN 3901
Katalogseite: 62,63

Bestellbezeichnung: |
||
flange only |
AFG-... |
|
including metric bolts and o-ring |
AFG-...M |
|
including UNC bolts and o-ring |
AFG-...U |
|
including bolts (metr. or UNC), o-ring, cutting ring and nut |
AFG-...MM (UM) |

SAE-flange metric tapped 24° companion DIN 3901
Katalogseite: 64,65

Bestellbezeichnung: |
316L |
|
flange with metric threads |
GFG-...L/S... |
GFG-X-...L/S |

SAE-90° flange adapter 24° DIN 3901 – forged
Katalogseite: 66,67

Bestellbezeichnung: |
316L |
|
only 90° elbow |
WFG-... |
WFG-X-... |
including split flanges, bolts and o-ring |
WFG-...M |
WFG-X-...MX |
including split flanges, bolts, o-ring, cutting ring and nut |
WFG-...MM |
WFG-X-...MMX |

SAE-90° flange adapter 24° DIN 3901 – brazed
Katalogseite: 68

Bestellbezeichnung: |
ST37*1 |
|
adapter only |
SFCE-... |
|
including split flanges, metric bolts and o-ring (nut and cutting ring) |
SFCE-...M(M) |
|
including split flanges, UNC bolts and o-ring (nut and cutting ring) |
SFCE-...U(M) |

SAE-90° threaded flange 24° DIN 3901
Katalogseite: 69

Bestellbezeichnung: |
||
flange only |
AFG-.../90M... |
|
including metric bolts and o-ring |
AFG-.../90M...M |
|
including UNC bolts and o-ring |
AFG-.../90M...U |

SAE-45° flange-adapter DIN 3901
Katalogseite: 70

Bestellbezeichnung: |
||
only 45° flange-adapter |
WFG-...-45-... |
WFG-X-...-45-... |
including split flanges, bolts and o-ring |
WFG-...-45-...M |
WFG-X-...-45-...MX |
including split flanges, bolts, o-ring, cutting ring and nut |
WFG-...-45-...MM |
WFG-X-...-45-...MMX |

SAE-adapter JIC 37°
Katalogseite: 71

Bestellbezeichnung: |
C22 |
316L |
adaptor only |
SFCE-...J |
SFCE-X-...J |
including split flanges, metric bolts and o-ring |
SFCE-...JM |
SFCE-X-...J...MX |
including split flanges, UNC bolts and o-ring |
SFCE-...JU |
SFCE-X-...J...UX |

SAE-threaded flange JIC 37°
Katalogseite: 72,73

Bestellbezeichnung: |
||
flange only |
AFG-... |
|
including metric bolts and o-ring |
AFG-...M |
|
incl. UNC-Schraubensatz und O-Ring |
including UNC bolts and o-ring |
AFG-...U |

SAE-90° flange adapter JIC 37° – forged
Katalogseite: 74,75

Bestellbezeichnung: |
316L |
|
only 90° elbow |
WFG-... |
WFG-X-... |
including split flanges, metric bolts and o-ring |
WFG-...M |
WFG-X-...MX |
including split flanges, UNC bolts and o-ring |
WFG-...U |
WFG-X-...UX |

SAE-45° flange adapter JIC 37° – forged
Katalogseite: 76

Bestellbezeichnung: |
||
only 45° flange-adapter |
WFG-...-45-J... |
WFG-X-...-45-J... |
including split flanges, bolts and o-ring |
WFG-...-45-J...M |
WFG-X-...-45-J...MX |

SAE-flange adapter BSPP thread
Katalogseite: 77

Bestellbezeichnung: |
316L |
|
adaptor only |
SFCE-...G |
SFCE-X-...G |
including split flanges, metric bolts and o-ring |
SFCE-...GM |
SFCE-X-...GMX |
including split flanges, UNC bolts and o-ring |
SFCE-...GU |
SFCE-X-...GUX |

SAE-90° flange adapter BSPP-60° – forged
Katalogseite: 78

Bestellbezeichnung: |
||
flange only |
WFG-...G |
|
including split flanges, metric bolts and o-ring |
WFG-...GM |
|
including split flanges, UNC bolts and o-ring |
WFG-...GU |

SAE-45° flange adapter BSPP-60° – forged
Katalogseite: 79

Bestellbezeichnung: |
||
only 45° flange-adapter |
WFG-...-45-G... |
WFG-X-...-45-G... |
including split flanges, bolts and o-ring |
WFG-...-45-G...M |
WFG-X-...-45-G...MX |

SAE-adapter UN-ORS threaded
Katalogseite: 80

Bestellbezeichnung: |
C22 |
316L |
adaptor only |
SORS-... |
SORX-... |
including split flanges, metric bolts and o-ring |
SORS-...M |
SORX-...MX |
including split flanges, UNC bolts and o-ring |
SORS-...U |
SORX-...UX |

SAE-90° adapter UN-ORS threaded
Katalogseite: 81

Bestellbezeichnung: |
||
only 90° flange-adapter |
WORS-... |
WORX-... |
including split flanges (or complete flange), metric bolts and o-ring |
WORS-...M |
WORX-...MX |
including split flanges, unc-bolts, o-ring |
WORS-...U |
WORX-...UX |

SAE-45° adapter UN-ORS threaded
Katalogseite: 82

Bestellbezeichnung: |
||
only 45° flange-adapter |
WORS-...-45-...(UN) |
WORX-...-45-...(UN) |
including split flanges, bolts and o-ring |
WORS-...-45-...(UN)M |
WORX-...-45-...(UN)MX |
including split flanges, unc-bolts, o-ring |
WORS-...-45-...(UN)U |
WORX-...-45-...(UN)UX |
SAE Closed Flanges

SAE-plugs
Katalogseite: 83

Bestellbezeichnung: |
316L |
|
flange plug only |
BL-... |
BL-X-... |
including split flanges (or complete flange), metric bolts and o-ring |
BL-...FH-M |
BL-X-...FH-MX |
including split flanges (or complete flange), UNC bolts and o-ring |
BL-...FH-U |
BL-X-...FH-UX |
Plug without groove |
BLO-... |

SAE-flange plug
Katalogseite: 84

Bestellbezeichnung: |
316L |
|
flange plug only |
BS-... |
BS-X-... |
including split flanges (or complete flange), metric bolts and O-ring |
BS-...-M |
BS-X-...-MX |
including split flanges (or complete flange), UNC bolts and O-ring |
BS-...-U |
BS-X-...-UX |
Plug without groove |
BSO-... |

SAE-closed flange
Katalogseite: 85

Bestellbezeichnung: |
316L |
|
flange only |
AFC-... |
AFC-X-... |
including metric bolts and o-ring |
AFC-...M |
AFC-X-...MX |
including UNC bolts and o-ring |
AFC-...U |
AFC-X-...UX |

SAE-closed flange companion
Katalogseite: 86

Bestellbezeichnung: |
316L |
|
flange only |
GFC-... |
GFC-X-... |

SAE-locking sheet
Katalogseite: 87

Bestellbezeichnung: |
||
locking sheet only |
AP-... |
|
flat seal |
SEAL-AP-... |

SAE-locking sheet with o-ringgroove
Katalogseite: 88

Bestellbezeichnung: |
C45 |
|
locking sheet with o-ring groove only |
APO-... |

SAE-flange with test point – straight
Katalogseite: 89

Bestellbezeichnung: |
316L |
|
flange only |
AFC-...G¹⁄₄” |
AFC-X-...G¹⁄₄” |
including metric bolts and o-ring |
AFC-...G¹⁄₄”M |
AFC-X-...G¹⁄₄”MX |
including UNC bolts and o-ring |
AFC-...G¹⁄₄”U |
AFC-X-...G¹⁄₄”UX |
SAE Adapter Flanges

SAE-adapter sheet
Katalogseite: 90

Bestellbezeichnung: |
||
adaptor sheet only |
ZP-... |

SAE-connector flange
Katalogseite: 91

Bestellbezeichnung: |
C45 |
|
connector flange only |
ZFG-... |

SAE-adapter flange with test point
Katalogseite: 92

Bestellbezeichnung: |
316L |
|
adaptor-flange only |
AGL-... |
AGL-X-... |
SAE Extension Flanges

SAE-adapter flange – straight
Katalogseite: 93

Bestellbezeichnung: |
316L |
|
flange only |
G-AF-... |
G-AF-X... |

SAE up size flange – welded
Katalogseite: 94

Bestellbezeichnung: |
Steel |
|
up size flange, AFS, GSFS and VFG |
E-AF-...-... |
SAE Blocks

SAE-90° L-block
Katalogseite: 95

Bestellbezeichnung: |
316L |
|
block only |
L-GD-... |
L-GD-X-... |

SAE-90° L-block – companion
Katalogseite: 96

Bestellbezeichnung: |
316L |
|
block only |
L-BL-... |
L-BL-X... |

SAE-90° L-reduction
Katalogseite: 97

Bestellbezeichnung: |
316L |
|
block only |
RED-GD-... |
RED-GD-X-... |

SAE-T-block
Katalogseite: 98

Bestellbezeichnung: |
316L |
|
block only |
T-GD-... |
T-GD-X... |

SAE-T-Block – companion
Katalogseite: 99

Bestellbezeichnung: |
316L |
|
block only |
T-BL-... |
T-BL-X... |
SAE Adapters (welded)

SAE-90° adapter – welded
Katalogseite: 100

Bestellbezeichnung: |
Steel |
|
elbow only |
AG-... |

SAE-90° adapter – welded
Katalogseite: 101

Bestellbezeichnung: |
Steel |
|
elbow only |
AG-... |

SAE-45° adapter – welded
Katalogseite: 102

Bestellbezeichnung: |
Steel |
|
elbow only |
AG-... |

SAE-45° adapter – welded
Katalogseite: 103

Bestellbezeichnung: |
Steel |
|
elbow only |
AG-... |

SAE-T-connection – welded
Katalogseite: 104

Bestellbezeichnung: |
Steel |
|
T-connection only |
T-... |
Other SAE Flanges

SAE-flare flange
Katalogseite: 105

Bestellbezeichnung: |
C45 |
|
flare flange only |
A-... |
|
flare flange only with o-ring groove |
BFM-... |
|
Flare flange complete with flare flange interior with o-ring groove, bolts and o-ring |
BFM-... M |

SAE-flare flange-coupling
Katalogseite: 106

Bestellbezeichnung: |
C45 |
|
flange-coupling |
BFK-...-M |

SAE-suction hose flange
Katalogseite: 107

Bestellbezeichnung: |
||
flange only |
SHFL-... |

SAE Threaded flange with BSPP thread and measuring connection G1/8 (shortest side)
Katalogseite: 108

Bestellbezeichnung: |
316L |
|
flange only |
AFS-...G-A1K |
AFX-...G-A1K |
including metric bolts and o-ring |
AFS-...G-A1K-M |
AFX-...G-A1K-MX |
including unc bolts and o-ring |
AFS-...G-A1K-U |
AFX-...G-A1K-UX |
including metric bolts, o-ring and test coupling |
AFS-...G-A1K-MM |
AFX-...G-A1K-MM |
including unc bolts, o-ring and test coupling |
AFS-...G-A1K-UM |
AFX-...G-A1K-UM |

SAE Socket weld flange with measuring connection G1/8 (shortest side)
Katalogseite: 109

Bestellbezeichnung: |
316L |
|
flange only |
AFS-...S-A1K |
AFX-...S-A1K |
including metric bolts and o-ring |
AFS-...S-A1K-M |
AFX-...S-A1K-MX |
including unc bolts and o-ring |
AFS-...S-A1K-U |
AFX-...S-A1K-UX |
including metric bolts, o-ring and test coupling |
AFS-...S-A1K-MM |
AFX-...S-A1K-MM |
including unc bolts, o-ring and test coupling |
AFS-...S-A1K-UM |
AFX-...S-A1K-UM |

SAE Butt weld imperial flange with measuring connection G1/8 (shortest side)
Katalogseite: 110

Bestellbezeichnung: |
316L |
|
flange only |
AFS-...ST-A1K |
AFX-...ST-A1K |
including metric bolts and o-ring |
AFS-...ST-A1K-M |
AFX-...ST-A1K-MX |
including unc bolts and o-ring |
AFS-...ST-A1K-U |
AFX-...ST-A1K-UX |
including metric bolts, o-ring and test coupling |
AFS-...ST-A1K-MM |
AFX-...ST-A1K-MM |
including unc bolts, o-ring and test coupling |
AFS-...ST-A1K-UM |
AFX-...ST-A1K-UM |
How to find us
Just enter your address here and we'll show you the easiest way to reach us:
