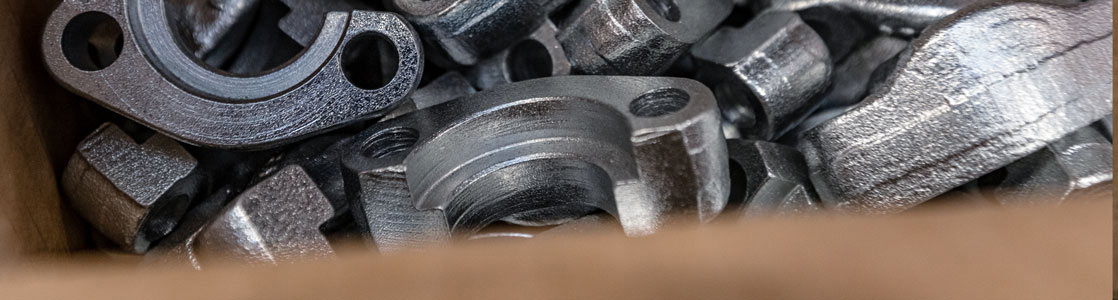

SAE Flange Halves / Flange Clamps

Find the right product for your company. Our wide range of products consisting of over 8000 individual parts makes it possible to create customised solutions for your company. Our product portfolio includes SAE flanges (ISO 6162), SAE full flanges, screw-in flanges, external thread flanges, weld-in and weld-on flanges as well as flanges with butt-welded collars. These products can all be delivered in straight and 90° versions.

Furthermore we can deliver closing flanges, connecting flanges, flanges with measurement connections, T-connectors, reducing flanges, raised-edge flanges and SAE blocks. These as well as connections for gear pumps and square-head flange connections (ISO 6164) are available as straight and 90° versions and Cetop (standard) versions.

Get a better picture of our range of products by clicking through our extensive online catalogue below.

SAE-split flange halves

Katalogseite: 1

Datenblatt

Anfrage »

Bestellbezeichnung:	C45	316L
flange half only	FH-...	FH-X-...
2 pcs. flange halfes	SATZ-FH-…	SATZ-FH-X-…
2 pcs. flange halfes, 4 pcs. screws with spring washer, o-ring	SATZ-FH-…-M(-UNC)	SATZ-FH-X-…-MX(-UX)

SAE-flange clamp

Katalogseite: 2

Datenblatt

Anfrage »

Bestellbezeichnung:	C45	316L
one piece flange clamp only	VF-...	VF-X-...
1 pcs. one piece flange clamp, 4 pcs. screws with spring washer, o-ring	SATZ-VF-…-M (-UNC)	SATZ-VF-X-…-MX (-UX)

SAE-split flange – flat

Katalogseite: 3

Datenblatt

Anfrage »

Bestellbezeichnung:
flange half flat only	HF-...
2 pcs. flange halfesflat	SATZ-HF-…
2 pcs. flange halfes flat, 4 pcs. screws with spring washer, o-ring	SATZ-HF-…-M (-UNC)

SAE-flange clamp – flat

Katalogseite: 4

Datenblatt

Anfrage »

Bestellbezeichnung:
one piece flange clamp flat only	VFH-...
1 pcs. one piece flange clamp - flat, 4 pcs. screws with spring washer, o-ring	SATZ-VFH-…-M (-UNC)

SAE-flange clamp metric tapped

Katalogseite: 5

Datenblatt

Anfrage »

Bestellbezeichnung:	C45	316L
flange only	VFG-...	VFG-X-...
