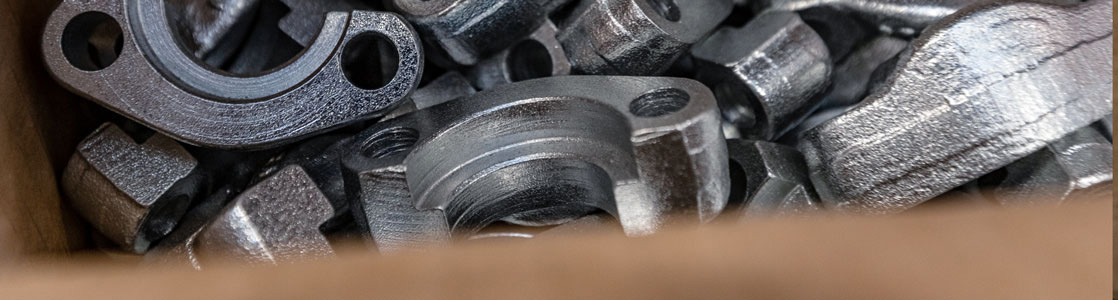

SAE Closed Flanges
SAE Closed Flanges
Find the right product for your company. Our wide range of products consisting of over 8000 individual parts makes it possible to create customised solutions for your company. Our product portfolio includes SAE flanges (ISO 6162), SAE full flanges, screw-in flanges, external thread flanges, weld-in and weld-on flanges as well as flanges with butt-welded collars. These products can all be delivered in straight and 90° versions.
Furthermore we can deliver closing flanges, connecting flanges, flanges with measurement connections, T-connectors, reducing flanges, raised-edge flanges and SAE blocks. These as well as connections for gear pumps and square-head flange connections (ISO 6164) are available as straight and 90° versions and Cetop (standard) versions.
Get a better picture of our range of products by clicking through our extensive online catalogue below.

SAE-plugs
Katalogseite: 83

Bestellbezeichnung: |
316L |
|
flange plug only |
BL-... |
BL-X-... |
including split flanges (or complete flange), metric bolts and o-ring |
BL-...FH-M |
BL-X-...FH-MX |
including split flanges (or complete flange), UNC bolts and o-ring |
BL-...FH-U |
BL-X-...FH-UX |
Plug without groove |
BLO-... |

SAE-flange plug
Katalogseite: 84

Bestellbezeichnung: |
316L |
|
flange plug only |
BS-... |
BS-X-... |
including split flanges (or complete flange), metric bolts and O-ring |
BS-...-M |
BS-X-...-MX |
including split flanges (or complete flange), UNC bolts and O-ring |
BS-...-U |
BS-X-...-UX |
Plug without groove |
BSO-... |

SAE-closed flange
Katalogseite: 85

Bestellbezeichnung: |
316L |
|
flange only |
AFC-... |
AFC-X-... |
including metric bolts and o-ring |
AFC-...M |
AFC-X-...MX |
including UNC bolts and o-ring |
AFC-...U |
AFC-X-...UX |

SAE-closed flange companion
Katalogseite: 86

Bestellbezeichnung: |
316L |
|
flange only |
GFC-... |
GFC-X-... |

SAE-locking sheet
Katalogseite: 87

Bestellbezeichnung: |
||
locking sheet only |
AP-... |
|
flat seal |
SEAL-AP-... |

SAE-locking sheet with o-ringgroove
Katalogseite: 88

Bestellbezeichnung: |
C45 |
|
locking sheet with o-ring groove only |
APO-... |

SAE-flange with test point – straight
Katalogseite: 89

Bestellbezeichnung: |
316L |
|
flange only |
AFC-...G¹⁄₄” |
AFC-X-...G¹⁄₄” |
including metric bolts and o-ring |
AFC-...G¹⁄₄”M |
AFC-X-...G¹⁄₄”MX |
including UNC bolts and o-ring |
AFC-...G¹⁄₄”U |
AFC-X-...G¹⁄₄”UX |
