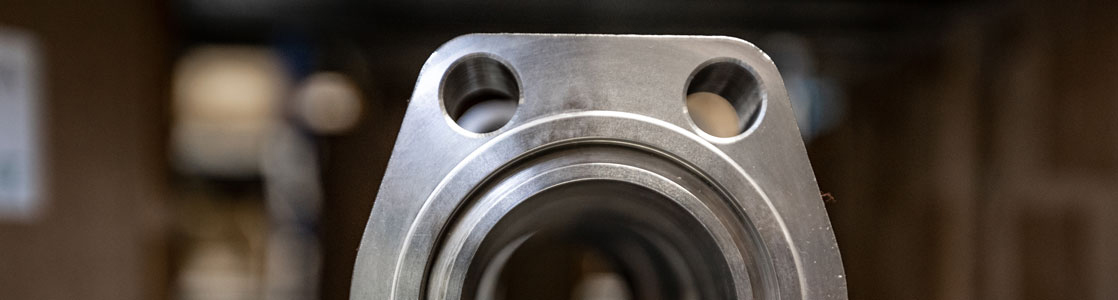

Retainer Ring Flanges ISO 6162 / 6164

Find the right product for your company. Our wide range of products consisting of over 8000 individual parts makes it possible to create customised solutions for your company. Our product portfolio includes SAE flanges (ISO 6162), SAE full flanges, screw-in flanges, external thread flanges, weld-in and weld-on flanges as well as flanges with butt-welded collars. These products can all be delivered in straight and 90° versions.

Furthermore we can deliver closing flanges, connecting flanges, flanges with measurement connections, T-connectors, reducing flanges, raised-edge flanges and SAE blocks. These as well as connections for gear pumps and square-head flange connections (ISO 6164) are available as straight and 90° versions and Cetop (standard) versions.

Get a better picture of our range of products by clicking through our extensive online catalogue below.


Flange Connections ISO 6164

Square flange

Katalogseite: 111

Bestellbezeichnung:

Square flange

VK-…

VK-X-…

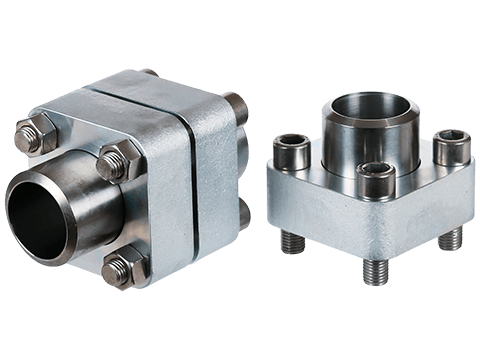

Butt weld centering flange – ND 160 – ISO 6164

Katalogseite: 112

Bestellbezeichnung:

C45

butt weld flange

VKA 32-.../AxSM

butt weld flange-coupling

VKK 28-.../AxSM

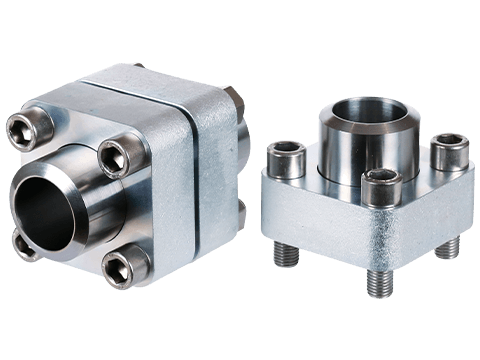

Butt weld centering flange – ND 250 – ISO 6164

Katalogseite: 113

Bestellbezeichnung:

C45

butt weld flange

VKA 33-.../AxSM

butt weld flange-coupling

VKK 29-.../AxSM

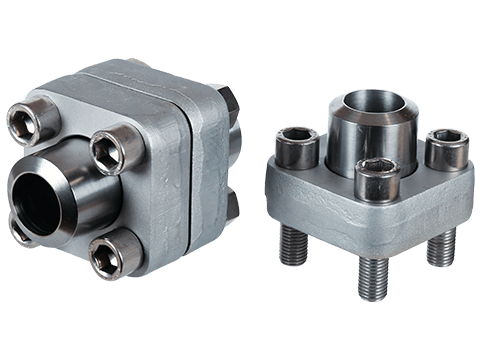

Butt weld centering flange – ND 315 – ISO 6164

Katalogseite: 114

Bestellbezeichnung:

C45

butt weld flange

VKA 34-.../AxSM

butt weld flange-coupling

VKK 30-.../AxSM

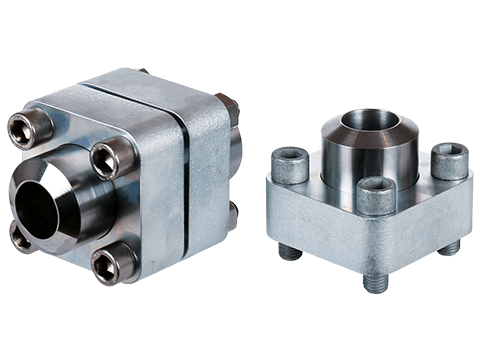

Butt weld centering flange – ND 400 – ISO 6164

Katalogseite: 115

Bestellbezeichnung:

C45

butt weld flange

VKA 43-.../AxSM

butt weld flange-coupling

VKK 41-.../AxSM

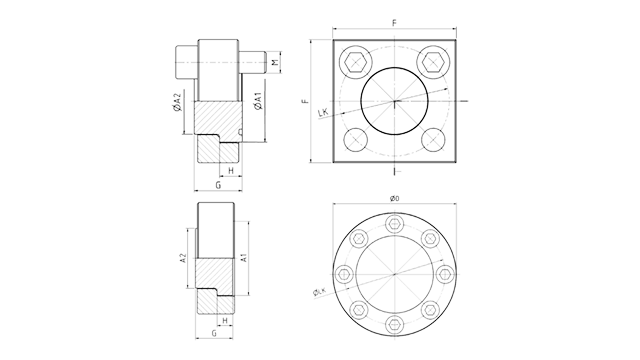

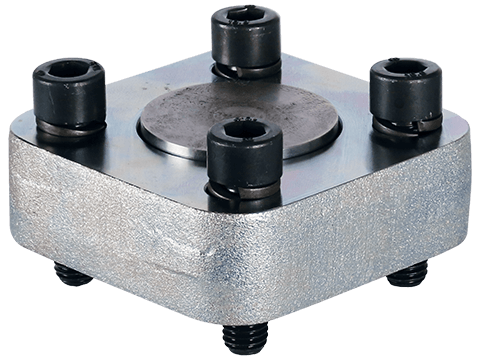

Centering flange plug – ND 160 – ISO 6164

Katalogseite: 116

Bestellbezeichnung:

flange plug with o-ring groove (flange plug including square or round flange respectively, o-ring and bolts)

VKB-... -160KM

flange plug without o-ring groove (flange plug including square or round flange respectively)

G-VKB-... -160K

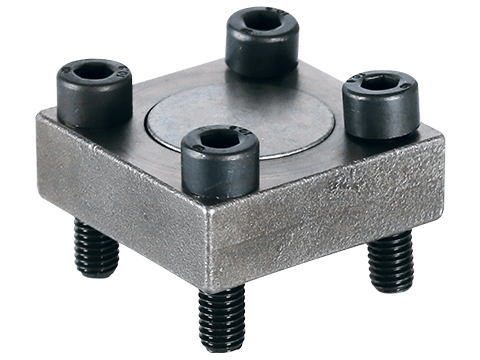

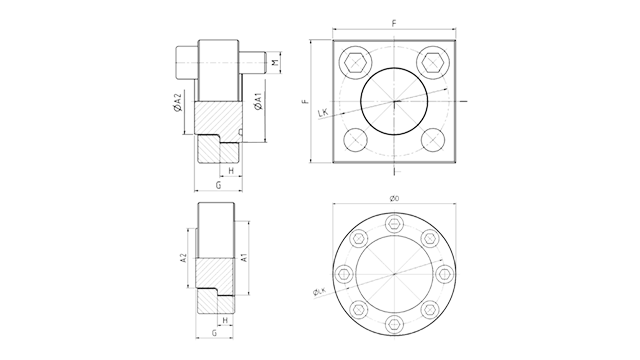

Centering flange plug – ND 250 ND 315 – ISO 6164

Katalogseite: 117

Bestellbezeichnung:

flange plug with o-ring groove only

VKB-...250

flange plug without o-ring groove only

G-VKB-...

flange plug with o-ring groove (flange plug including square or round flange respectively, o-ring and bolts)

VKB-... KM

flange plug without o-ring groove (flange plug including square or round flange respectively)

G-VKB-... K

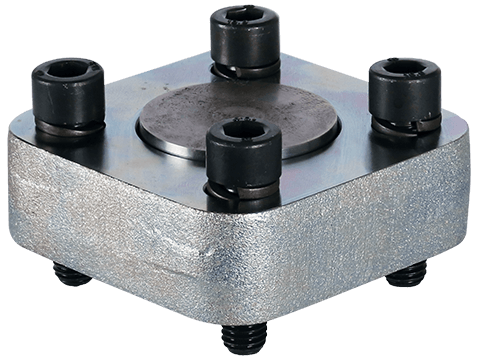

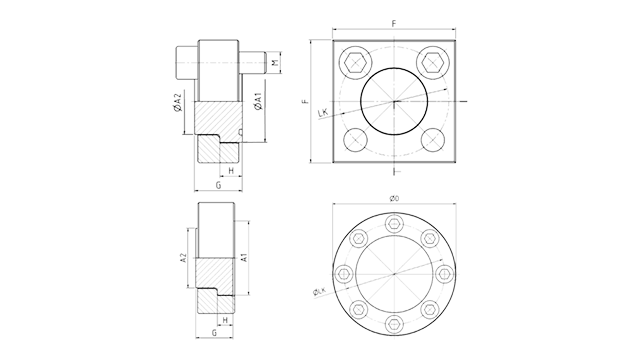

Centering flange plug – ND 400 – ISO 6164

Katalogseite: 118

Bestellbezeichnung:

flange plug with o-ring groove (flange plug including square or round flange respectively, o-ring and bolts)

VKB-... -400KM

flange plug without o-ring groove (flange plug including square or round flange respectively)

G-VKB-... -400K

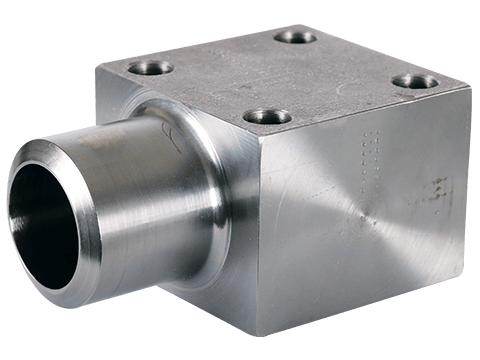

90° butt weld centering flange – ISO 6164

Katalogseite: 119

Bestellbezeichnung:

C15

elbow only

VKW-...

including bolts and o-ring

VKW-...M

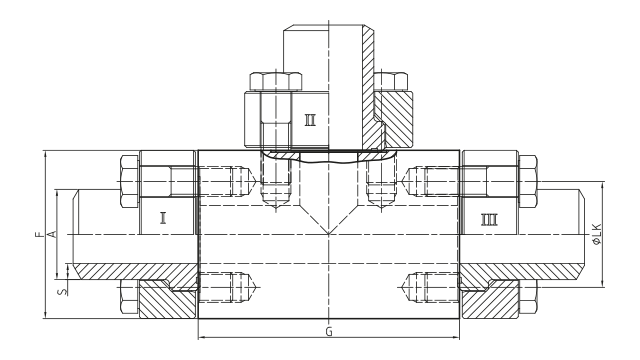

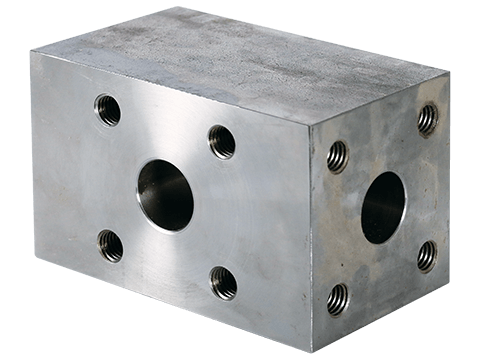

T-flange connector

Katalogseite: 120

Bestellbezeichnung:

316L

T-flange connector only

VKV-...

VKV-X-...

including flange, bolts and o-ring

VKV-...KM

VKV-X-...KMX

Flange Connections CETOP

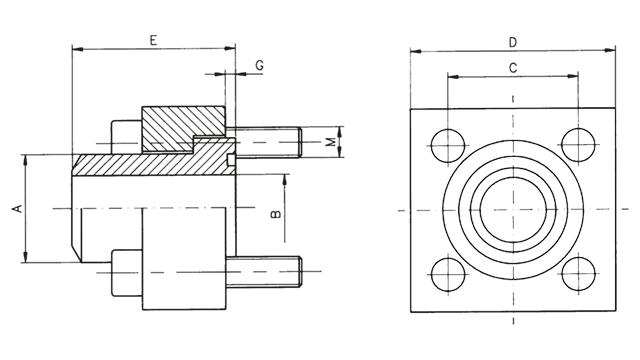

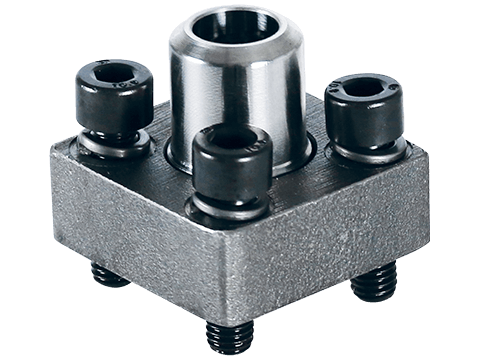

CETOP-butt weld flange

Katalogseite: 121

Bestellbezeichnung:

butt weld flange (including metric bolts and o-ring)

CET-...M

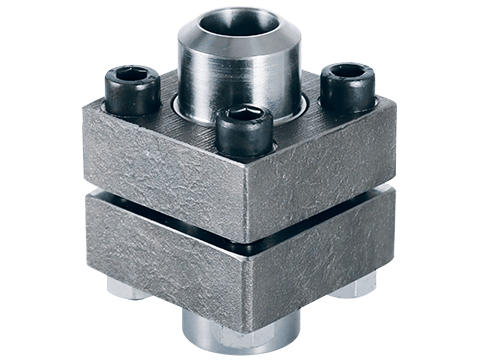

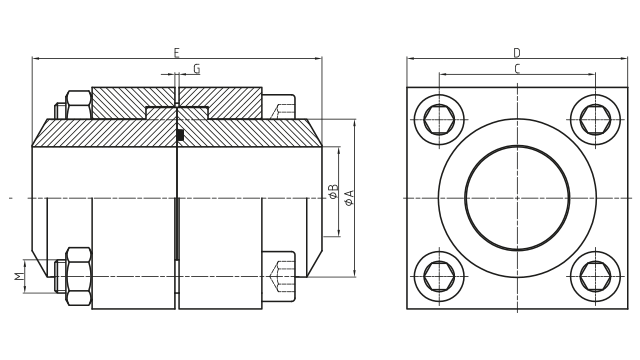

CETOP-butt weld flange-coupling

Katalogseite: 122

Bestellbezeichnung:

flange-coupling (including metric bolts and o-ring)

D-CET-...M

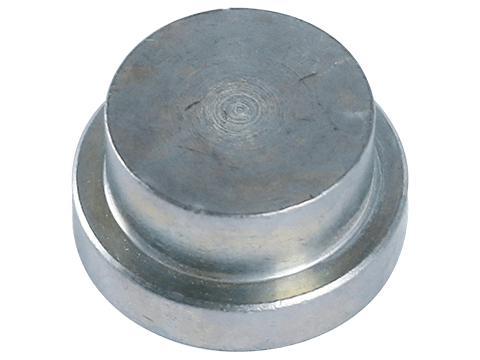

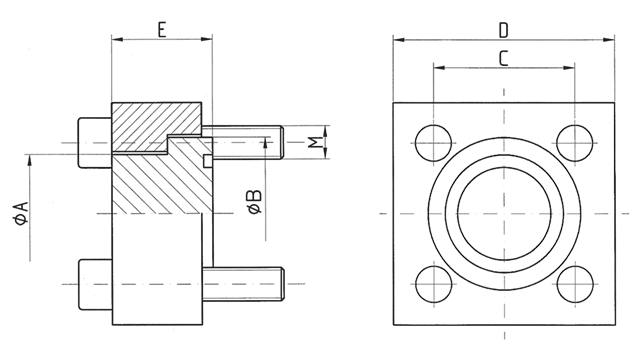

CETOP-flange plug

Katalogseite: 123

Bestellbezeichnung:

flange plug (including metric bolts and o-ring)

BS-...M

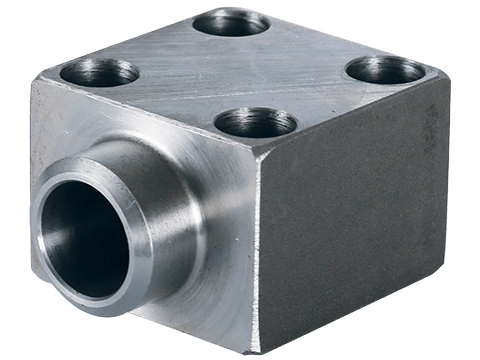

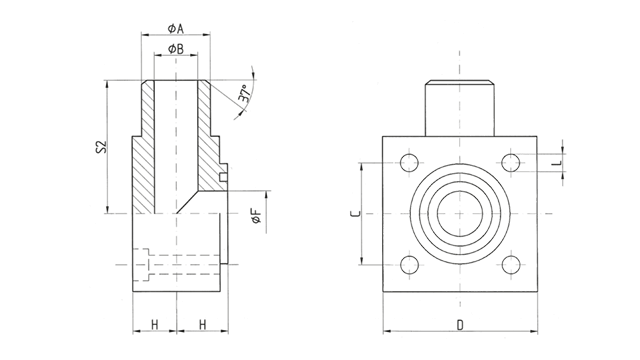

CETOP 90° butt weld flange

Katalogseite: 124

Bestellbezeichnung:

flange only

CET-.../90...

including metric bolts and o-ring

CET-.../90...M
