Other SAE Flanges
Other SAE Flanges
Find the right product for your company. Our wide range of products consisting of over 8000 individual parts makes it possible to create customised solutions for your company. Our product portfolio includes SAE flanges (ISO 6162), SAE full flanges, screw-in flanges, external thread flanges, weld-in and weld-on flanges as well as flanges with butt-welded collars. These products can all be delivered in straight and 90° versions.
Furthermore we can deliver closing flanges, connecting flanges, flanges with measurement connections, T-connectors, reducing flanges, raised-edge flanges and SAE blocks. These as well as connections for gear pumps and square-head flange connections (ISO 6164) are available as straight and 90° versions and Cetop (standard) versions.
Get a better picture of our range of products by clicking through our extensive online catalogue below.

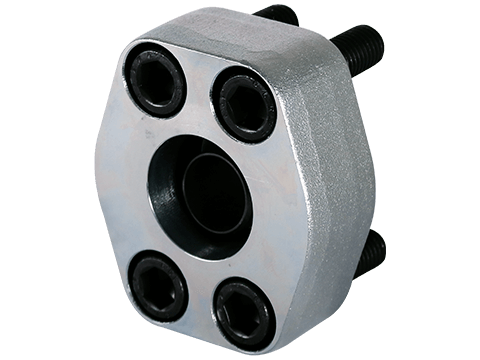

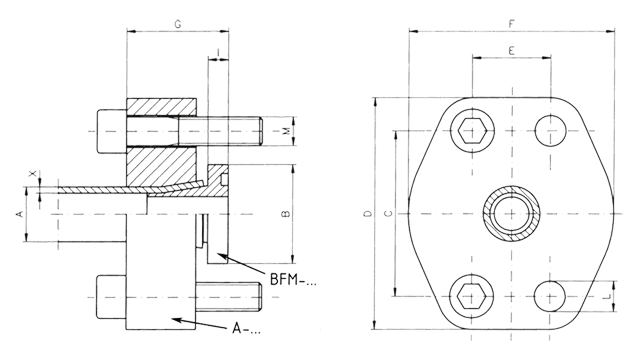

SAE-flare flange
Katalogseite: 105

Bestellbezeichnung: |
C45 |
|
flare flange only |
A-... |
|
flare flange only with o-ring groove |
BFM-... |
|
Flare flange complete with flare flange interior with o-ring groove, bolts and o-ring |
BFM-... M |

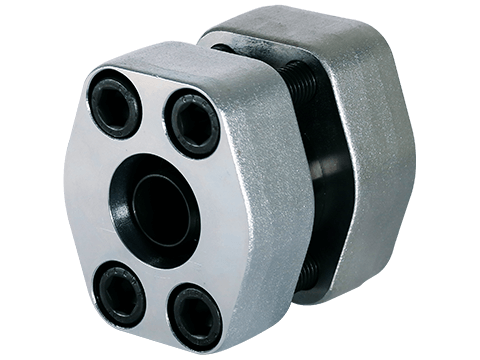

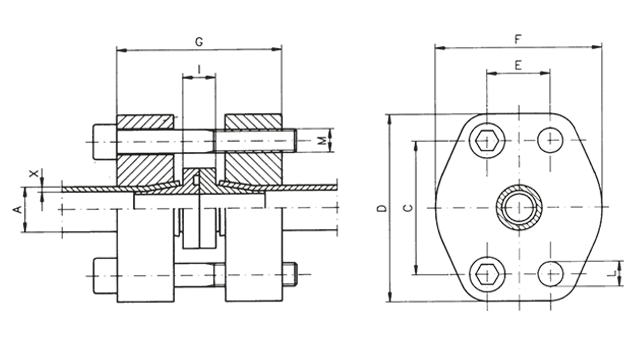

SAE-flare flange-coupling
Katalogseite: 106

Bestellbezeichnung: |
C45 |
|
flange-coupling |
BFK-...-M |

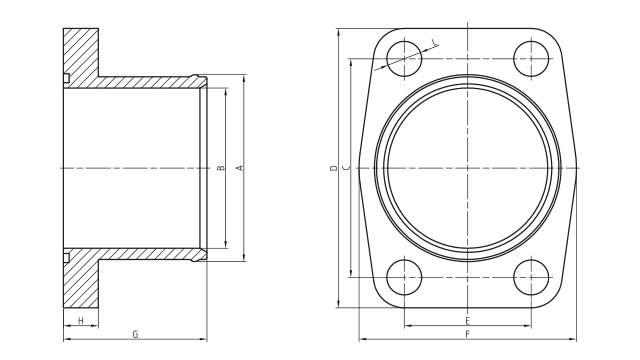

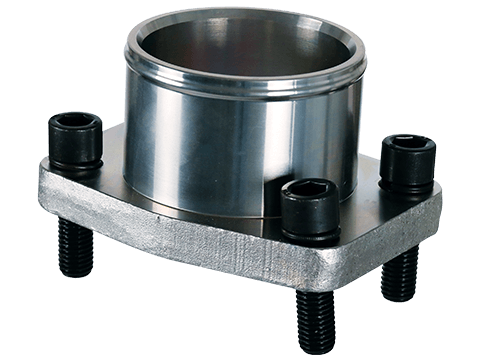

SAE-suction hose flange
Katalogseite: 107

Bestellbezeichnung: |
||
flange only |
SHFL-... |

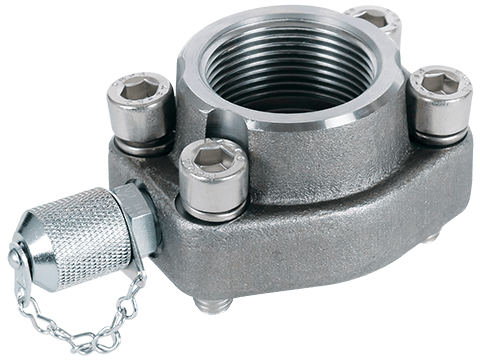

SAE Threaded flange with BSPP thread and measuring connection G1/8 (shortest side)
Katalogseite: 108

Bestellbezeichnung: |
316L |
|
flange only |
AFS-...G-A1K |
AFX-...G-A1K |
including metric bolts and o-ring |
AFS-...G-A1K-M |
AFX-...G-A1K-MX |
including unc bolts and o-ring |
AFS-...G-A1K-U |
AFX-...G-A1K-UX |
including metric bolts, o-ring and test coupling |
AFS-...G-A1K-MM |
AFX-...G-A1K-MM |
including unc bolts, o-ring and test coupling |
AFS-...G-A1K-UM |
AFX-...G-A1K-UM |

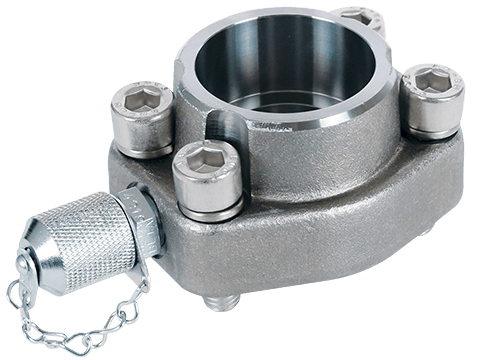

SAE Socket weld flange with measuring connection G1/8 (shortest side)
Katalogseite: 109

Bestellbezeichnung: |
316L |
|
flange only |
AFS-...S-A1K |
AFX-...S-A1K |
including metric bolts and o-ring |
AFS-...S-A1K-M |
AFX-...S-A1K-MX |
including unc bolts and o-ring |
AFS-...S-A1K-U |
AFX-...S-A1K-UX |
including metric bolts, o-ring and test coupling |
AFS-...S-A1K-MM |
AFX-...S-A1K-MM |
including unc bolts, o-ring and test coupling |
AFS-...S-A1K-UM |
AFX-...S-A1K-UM |

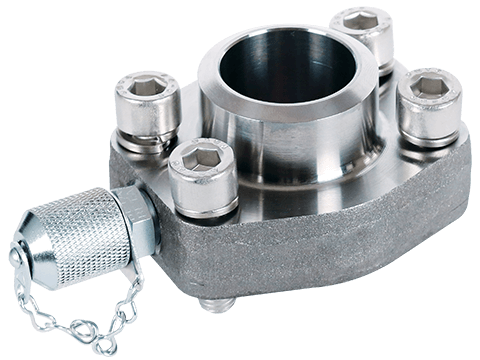

SAE Butt weld imperial flange with measuring connection G1/8 (shortest side)
Katalogseite: 110

Bestellbezeichnung: |
316L |
|
flange only |
AFS-...ST-A1K |
AFX-...ST-A1K |
including metric bolts and o-ring |
AFS-...ST-A1K-M |
AFX-...ST-A1K-MX |
including unc bolts and o-ring |
AFS-...ST-A1K-U |
AFX-...ST-A1K-UX |
including metric bolts, o-ring and test coupling |
AFS-...ST-A1K-MM |
AFX-...ST-A1K-MM |
including unc bolts, o-ring and test coupling |
AFS-...ST-A1K-UM |
AFX-...ST-A1K-UM |
